PRICE INFO
|
|
The prices and the availability of the kits, components and programs listed below are subject to change. To receive a customized and current quote, please e-mail your list of desired kit(s) and options, including full name and contact information (address and tel. number) to [email protected]. If you have any questions, do not hesitate to write or call us at 705-526-2871.
Click here for the latest on availability of STOL CH 801-SD airframe kits. (Updated 06/22)
NEW: Complete Wings & Tail kit available August 2022 (Contact Michael for details: [email protected])
NEW: Complete Wings & Tail kit available August 2022 (Contact Michael for details: [email protected])
STOL CH 801: COMPLETE AIRFRAME KITS Model: HD* SD
|
STOL CH 801 Complete Airframe Kit (Standard) - (SAK)
The standard kits for the STOL CH 801 HD or SD models comes with all parts to build the airframe: The complete kit includes the factory riveted wing spars, pre-formed sheet-metal parts (ribs, skins, etc.), factory-welded parts, landing gear system and wheels, standard fuel system, controls, and all hardware required for assembly. Not included in the airframe kit: firewall-forward package, powerplant, instruments & avionics, paint, and upholstery. Assembly Drawings and Manuals included. |
Discontinued
|
$62,350.00
|
Note: Quick-Build kits for the STOL CH 801-SD are not currently sold by Zenair.
Contact a Build-Assistance Center for possible assistance...
Contact a Build-Assistance Center for possible assistance...
STOL CH 801 - STANDARD COMPONENT KITS
To ‘buy-as-you-build’ instead of ordering the complete Standard kit as a single package, you may choose to purchase "sections" (Components) of the standard airframe kit . Assembly drawings and manuals included.
|
COMPONENT KIT: Model:
|
HD*
|
SD
|
|
WINGS KIT (WK)
(Fuel System Kit required to complete the wings) |
$13,975.00
|
$16,605.00
|
|
FLAPERONS & LEADING EDGE SLATS KIT (FLK)
|
$ 4,235.00
|
$4,395.00
|
|
TAIL KIT (includes electric trim tab) (HTK)
|
$ 3,806.00
|
$4,675.00
|
|
FUSELAGE KIT (also includes most "Finishing Kit" items) (FK)
|
$19.595.00
|
$22,380.00
|
|
GEARS & WHEELS KIT (GW)
|
$7,345.00
|
$8,460.00
|
|
CONTROLS KIT (CK)
|
$3,580.00
|
$4,575.00
|
|
FUEL SYSTEM KIT (order with the Wings Kit) (FSK)
|
$2,655.00
|
$3,050.00
|
|
SAVE ON COMPLETE AIRFRAME KIT (standard) (SAK)
|
Not Available
|
$62,350.00
|
* Component kits for the HD model are now only available to current builders, to complete their aircraft. Since May 2018, all new CH 801 start-ups are for the new "Super-Duty" (SD) model. If the smaller/lighter CH 801-HD could meet all your needs for a sturdy STOL design, consider the very similar Super-Duty CH 750-SD!
STOL CH 801 OPTIONS KITS for HD and SD models
Thanks
to the long list of STANDARD equipment included in the airframe kit,
there are few additional options needed or recommended. You may order the
following OPTIONS from Zenair when ordering the kit (or component kits) - to install
when building the aircraft. Where specified, some options can be installed as a retrofit item. See here for more...
|

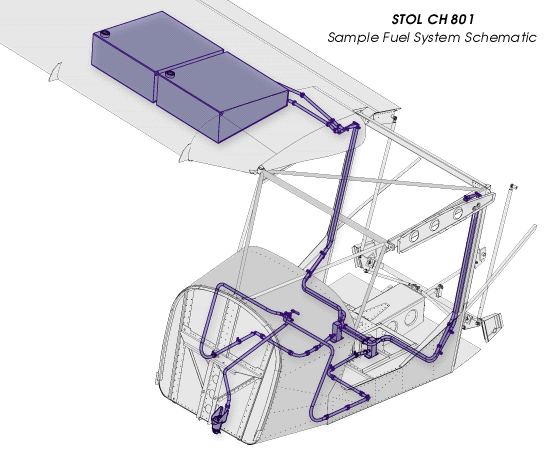

Extended Range Auxiliary Fuel Tanks Option Kit (P/N: 801-ERKF)
Two additional welded aluminum wing tanks to supplement the standard dual wing tanks. Approx. 15 US Gallons each. [schematic] |
$2,135.00
|
|
HD/SD LED NAV/STROBE/POSITION LIGHT KIT (P/N: 801-LED)
AeroLED: Pair of wingtip mounted three-in-one combination navigation / strobe and position lights (includes mounting hardware but no wire or switches). Available as retrofit. Click here for details |
$1,310.00
|
|
HD/SD LED LANDING LIGHT KIT (price each) (P/N: 750-LLO)
AeroLED: Super-bright landing light (AeroLED MicroSun: 1,800 lumens, 20 watts) mounts inside the wing leading edge slat. Available as a retrofit. Order two (02) for "wig-wag" capability. Photo 1 - Photo 2 |
$530.00 (ea)
|
|
HD/SD MICRO VORTEX GENERATORS for ELEVATOR (P/N: 801-VG)
Install these new vortex generators on the bottom of the elevator for even slower approach speeds. Kit includes everything you need to install the VGs to a new or existing STOL CH 801. Available as a retrofit. Click here for details |
$190.00 (HD)
$230.00 (SD) |
|
HD/SD DUAL CONTROL STICKS (P/N: 801-DCS)
This option replaces the standard "Y" center stick with dual control sticks. |
$1,290.00
|
|
HD/SD Dual Brakes Option kit (P/N: 801-DB)
Allows passenger to have full braking capability (individual toe brakes). Ideal for instructing from the right seat! Kit includes toe-brake pedals, slave cylinders, hinges, brackets, brake line, connectors and hardware... |
$685.00 |
|
HD/SD Domed Bubble Windows
|
.
$735.00
$960.00 |
|
HD Wing Strut Fairing Kit (P/N: 801-WSFK)
Aerodynamic strut fairing to improve the speed and looks of your STOL CH 801. Retrofit. |
$425.00
|
|
HD Cabin Heat (w. windshield defroster) (P/N: 801-CHO/375)
Designed for the IO-375 engine by Aero Sport Power, this cabin heater is designed for Canadian Winters and has an added defroster bringing warm air to the windshield! |
$995.00
|
|
SD Tundra Tire Option
|
Coming Soon
|
|
HD/SD Belly Cargo Pod
|
Coming Soon
|
|
KIT
ASSEMBLY TOOLS
Purchase individual tools from our Online Kit Store (such as drill bits or Cleco temporary fasteners) or the Complete Took Kit in one box. |
CRATING, HANDLING AND SHIPPING
Kit prices do not include any crating, handling or shipping costs. The following crating and handling charges apply for standard kits and component kit orders. Due to the size and weight of the kits, kit orders are usually shipped by surface freight (truck). All shipping charges are Ex-Works Midland, ON CANADA. Call for a shipping quote or additional details.
Note: The STOL CH 801 kit is produced and shipped by Zenair Ltd. The factory is located in Midland, Ontario, Canada, with easy access for shipping complete kits and parts across North America and the rest of the world. Provision may also be made to pick-up the crated kit at the Zenith Aircraft factory.
Below are crating and handling charges. These included the price of the lumber, construction of the crate and the loading/packaging of the kit parts. We regret recent price increases in crating fees, however the price of lumber more than doubled in early 2021. Actual shipping charges are in addition (separate).
Note: The STOL CH 801 kit is produced and shipped by Zenair Ltd. The factory is located in Midland, Ontario, Canada, with easy access for shipping complete kits and parts across North America and the rest of the world. Provision may also be made to pick-up the crated kit at the Zenith Aircraft factory.
Below are crating and handling charges. These included the price of the lumber, construction of the crate and the loading/packaging of the kit parts. We regret recent price increases in crating fees, however the price of lumber more than doubled in early 2021. Actual shipping charges are in addition (separate).
|
Complete Standard Airframe Kit
- Domestic:
One Box, approx. 14' x 4' x 4', 1,250 lbs. |
$890.00
|
|
Complete Standard Airframe Kit
- International:
One Box, approx. 14' x 4' x 4', 1,300 lbs. One Box, approx. 4.3m. x 1.2m. x 1.1m., 600 kg. |
$1,235.00
|
|
Component Kits
Crating Charges:
|
|
** The cost of the rudder starter kit is deductible off the
cost of the tail kit (or the complete kit), if previously purchased.
-
Click here
for details on the Introductory Starter Kit for just $495.00
-
Click here
for details about the Quick-Build Kit.
- Click here for details and prices on Firewall-Forward Installation Kits.
Prices above are all in US funds. Prices, equipment and availability are subject to change without notice.
Prices do not include crating or shipping charges (Ex-Works Midland, ON CANADA). Applicable taxes are extra.
